3.4W/6.5W/9.6W /11W/13W LED T5 Batten
Download:
Keywords:
- Product Details
- Parameter
-
T5 integrated bracket light features: No strobe, high transparency PC cover, high color rendering index to restore real colors Ra>80, no shadow docking using quick plug series connection, continuous lighting widely used in cabinets, car wash shops, hospitals, workshops, supermarkets and other places.
Fixtures
Basic DescriptionProduct code EG-T5-01 Product Name LED T5 Batten LED Brand & Model MLS SMD2835 3V 0.2W LED chip working current mA 60 LED Qty.(pcs) 22 Circuit diagram 1*22 (300mm)
2*19 (600mm)
2*29 (900mm)
2*33 (1000mm)
2*38 (1200mm)Optic Parameters PC Input Voltages(V) 220-240V Frequency(Hz) 50/60Hz THD <30% Mains surge capability (between L - N) 1.5KV Mains surge capability (between L/N - PE) 1.5KV Insulation voltage 3.0KV Total Power(W)
3.4W±10% (300mm)
6.5W±10% (600mm)
9.6W±10% (900mm)
11W±10% (1000mm)
13W±10% (1200mm)Lumens output(lm) 340lm±10%(300mm)
650lm±10%(600mm)
960lm±10%(900mm)
1100lm±10%(1000mm)
1300lm±10%(1200mm)Efficiency(lm/w) 100lm/w±5%(300mm) Beam Angles(°) 120° CRI (Ra) 80 Color Temp.(K) 3000/4000/6500 Power factor 0.5 Electric shock protection classification Class II IP rating 20 IK Rating 03 UGR ＜20 SDCM <6 Photometrics
Fixtures Certification TUV CE Driver Certification LVD,EMC Housing Housing parameters PC Housing Color White Optical part Lens Material PC Diffuser material PC Reflector material PC Installation Operation Environment (Indoor/Outdoor) Indoor Type of mounting Ceiling Product Size Length (mm) 321 Width (mm) 21 Height (mm) 32.5 Product Weight Net Weight (KG) 0.065KG Gross Weight (KG) 0.09KG Life Life time(Hrs) 20,000 L70B50 @Ta25'C (H) 20,000 Ambient Temperature and working temperature -20-40℃ Switch Cycle 15000 Warrtany(year) 2 years Packaging Outer Carton Size MM
365*358*145 (300mm)
618×365×145 (600mm)
918×365×145 (900mm)
1051×365×145 (1000)
1218×365×145 (1200mm)Line diagram：

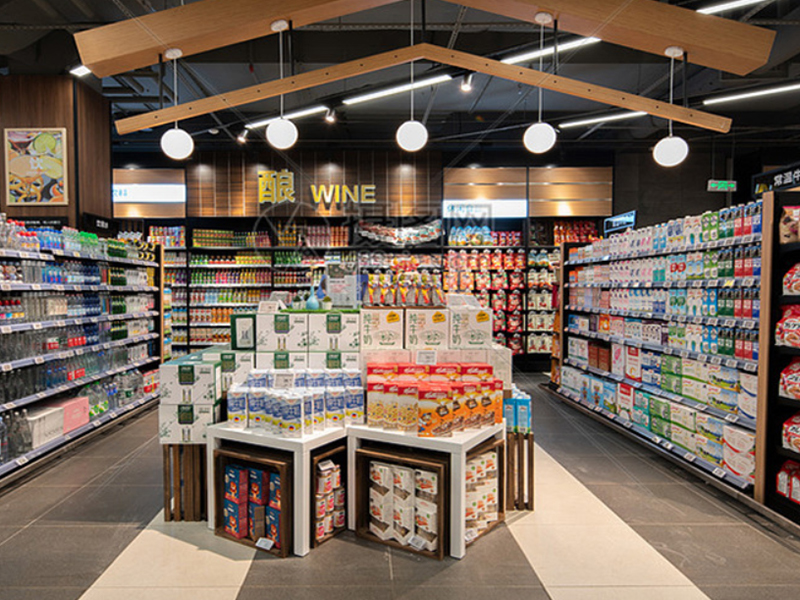

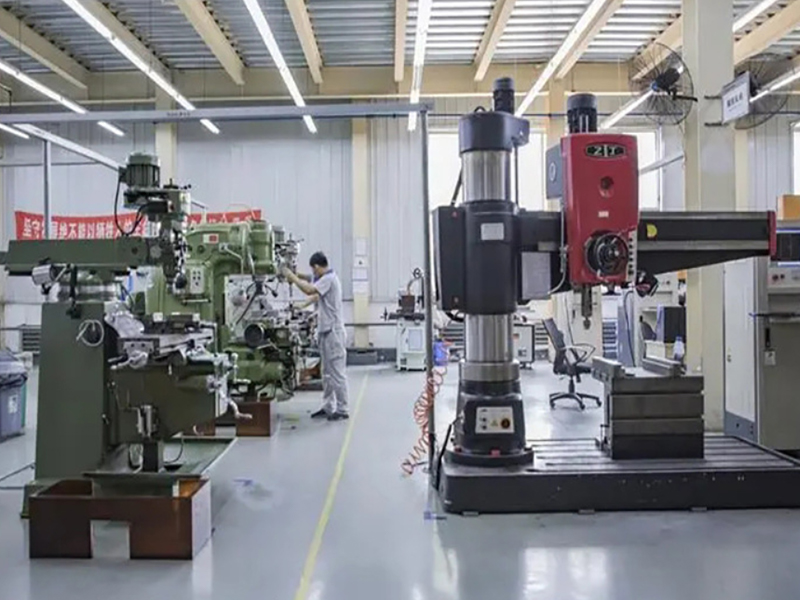

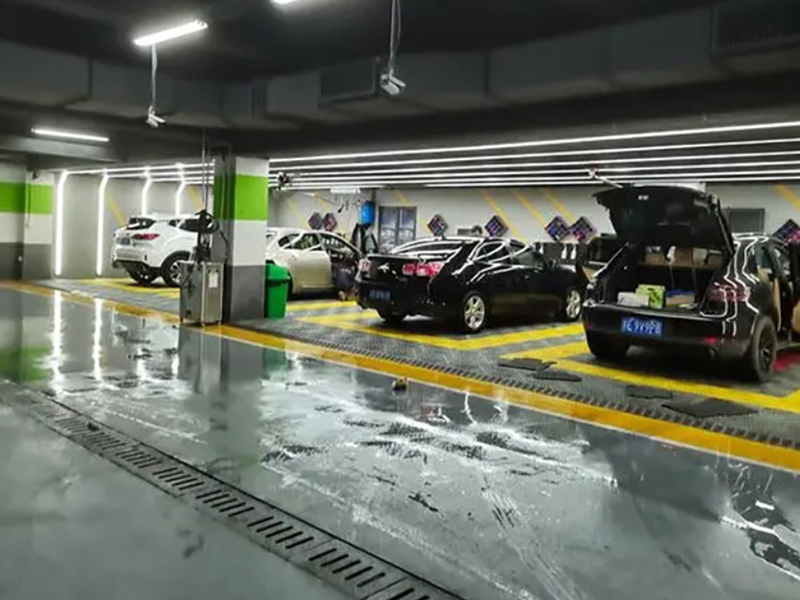

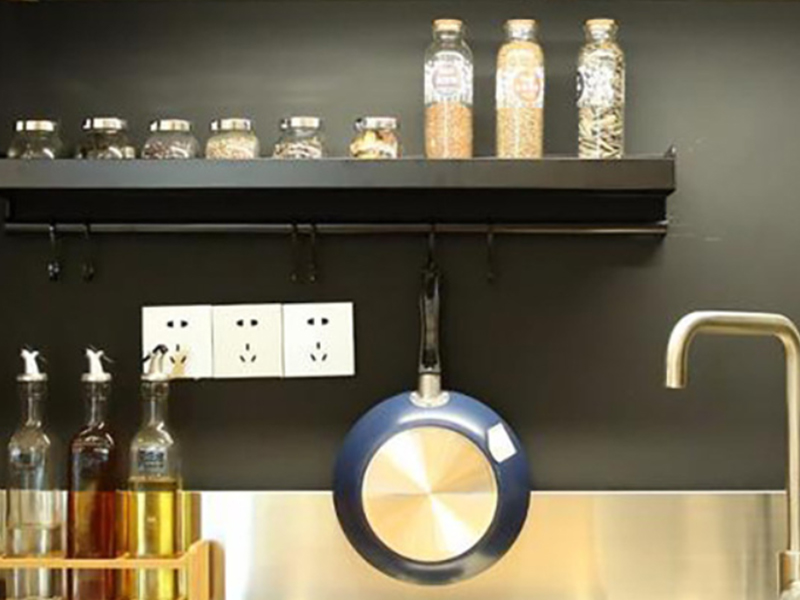

Case scenario diagram：
